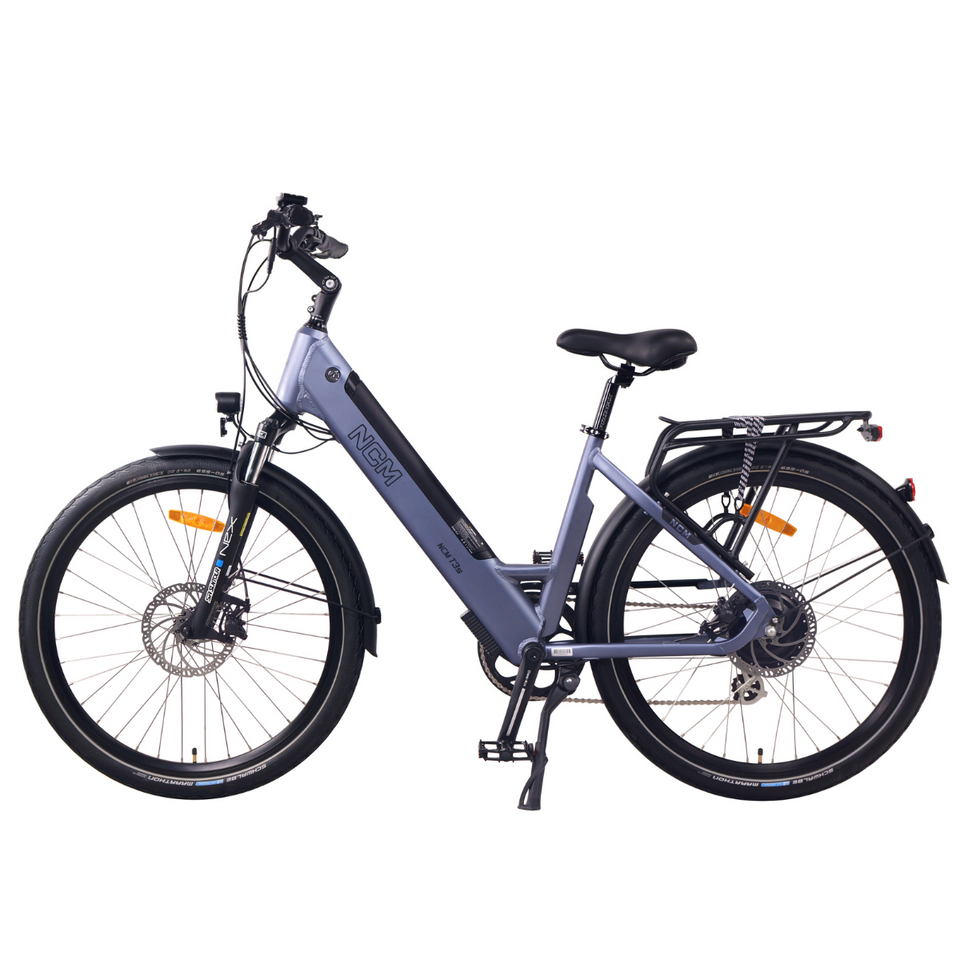

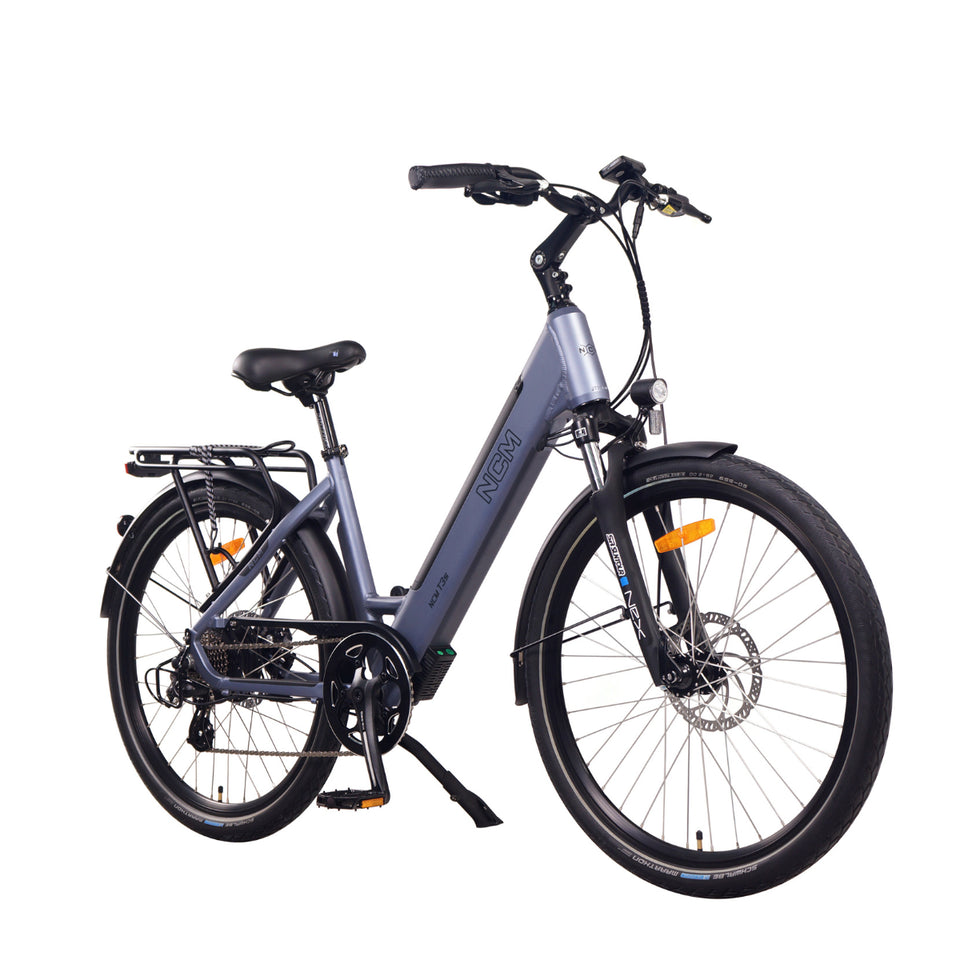

NCM Milano T3s Step Thru
An exceptional entry point into the world of e-trekking bikes, the NCM T3s offers the chance to experience the smoothest city and countryside rides on an accessible step-through e-bike engineered with high-quality components.
BIKE COMPONENTS
Frame: Alu. 6061, 26"*16.5" inches
Suspension Fork: Suntour, NEX 26
Brake: F/R: Tektro Disc Brakes,MD-M280,180mm rotor
Freewheel: 7 Speed, 14-28T
Tire: Schwalbe, Marathon, 26*2.0, Black
Saddle: Selle Royal, FREEWAY
Stem: ZOOM, TDS-C269-8/ISO-P
Crank: Das-Kit, CT48A, 48T
Shifter: Shimano, Altus, R:SL-M315-7R, 7 Speed
Derailleur: Shimano, Altus RD-M310
Chain: KMC, Z51
Rack: Rear Rack with Elastic Straps
ELECTRIC COMPONENTS
Battery: Das-Kit, i6-4812, 48V 12AH, 576WH
Hub Motor Rated: Das-Kit, X15, 48V 250W
Controller: Das-Kit, CT-i6, 48V18A
Charger: Das-Kit, 48V2A
Display: Das-Kit, L7T
Front Light: DH002, 48V, 40 Lux
Rear Light: Spanninga, Kendo, DR009, AAA*2
WEIGHT
Net Weight (with battery): 26.0kg
Battery Weight: 3.5kg
Max Load (driver+bike): 140kg
