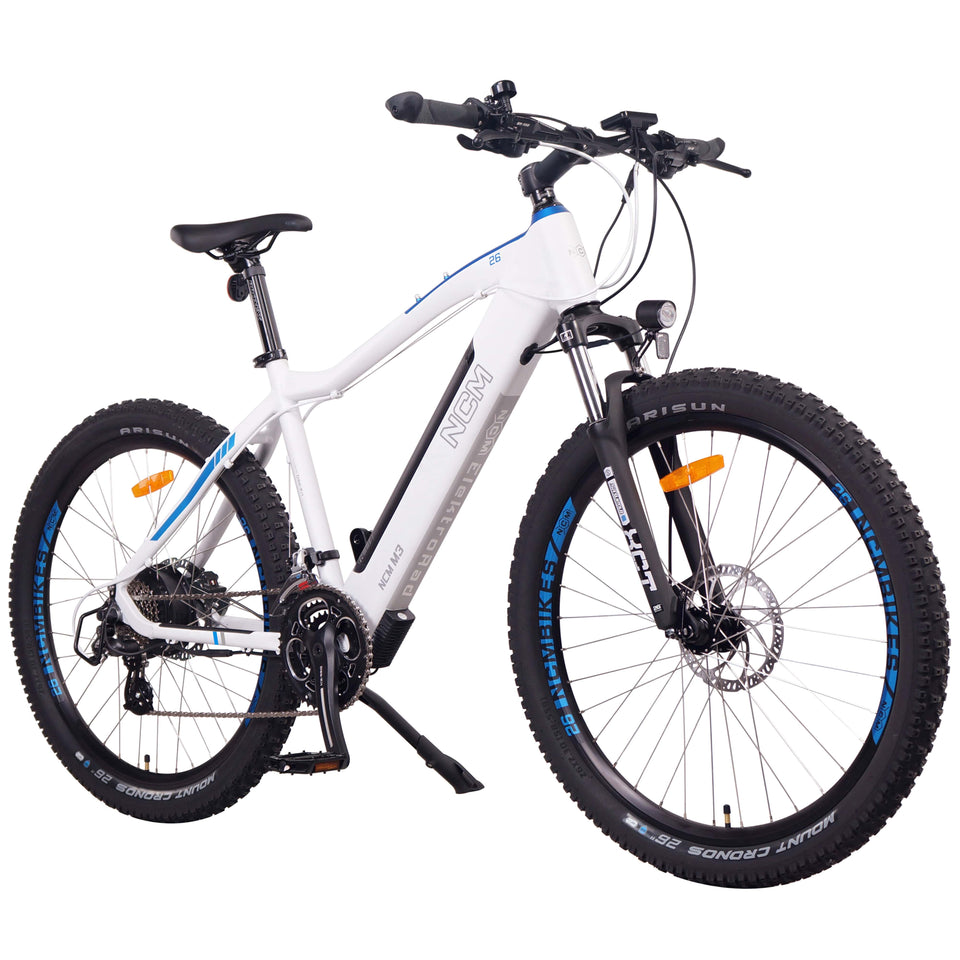

NCM M3 Hydraulic Brakes
BIKE COMPONENTS
Frame: Alu. 6061, 26"*18.1 inches / 27.5"*18.9 inches / 29"*20.5 inches
Suspension Fork: Suntour, XCT
Brake: Tektro / Das-Kit Hydraulic Disc Brakes
Freewheel: 7 Speed, 14-28T
Tire: Arisun Mount Cronos
Saddle: VELO, VL-3410
Stem: Promax, Alu.MA-471
Crank: DAS-KIT, CM48,28/38/48T
Shifter Left: Shimano, Altus, F: SL-M315-L, 3 Speed
Shifter Right: Shimano, Altus, R: SL-M315-7R, 7 Speed
Front Derailleur: Shimano, Altus, FD-M313
Rear Derailleur: Shimano, Altus, RD-M310
Chain: KMC, Z51
ELECTRIC COMPONENTS
Battery: Das-Kit, i6-4812, 48V 12AH, 576WH
Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25KM/H
Controller: Das-Kit, CT-i6, 48V18A
Charger: Das-Kit, 48V2A
Display: Das-Kit, L7
Front Light: DH002, 48V, 40 Lux
WEIGHT
Net Weight (with battery): 26.0kg
Battery Weight: 3.4kg
Max Load (driver+bike): 125.0kg
Features
General Information
Type: E-Mountainbike
Wheel size: 26" / 27,5” / 29”
Load capacity: Max. 125kg
Maximum speed: 25km/h
Lithium-ion Battery
Model: i6-4812H
Ratings: DC 48V, 12Ah, 576Wh
Electric Parts
Display: Das-Kit, L7
Controller: Das-Kit, CT5-I6, 48V 15A
Charger: Included DC482AU 48V 2A with round plug
Motor: Das-Kit, X15, 48V 250W, 25km/h, rear-drive motor
Battery: i6-4812H, 48V 12Ah, 576Wh High Power Cells,
Distance approx. 40-120km depending on assistance level.
Front/Rear Light: Have to be purchased separately. Not included. Front/Rear reflector incl., cat's eye
Bike Parts
Frame: Alu. 6061 26"*460MM | 27.5"*480MM | 29"*520MM
Fork: Suntour, XCT- 26" / 27.5" / 29”
Brake Lever: Tektro, with brake sensor on the right side
Brakes: F/R: Tektro Disc Brakes
Crank: Shimano, Altus
Front Derailleur: Shimano Altus Triple
Rear Derailleur: Shimano Altus, 7 speed
Tire: Arisun Mount Cronos , 26*2.30 | 27.5*2.35 | 29*2.35
Saddle: VELO designed by NCM, black
Seat Post: Promax
Grip: NCM VELO, VL-3410
Pedal: Wellgo. B087, black
